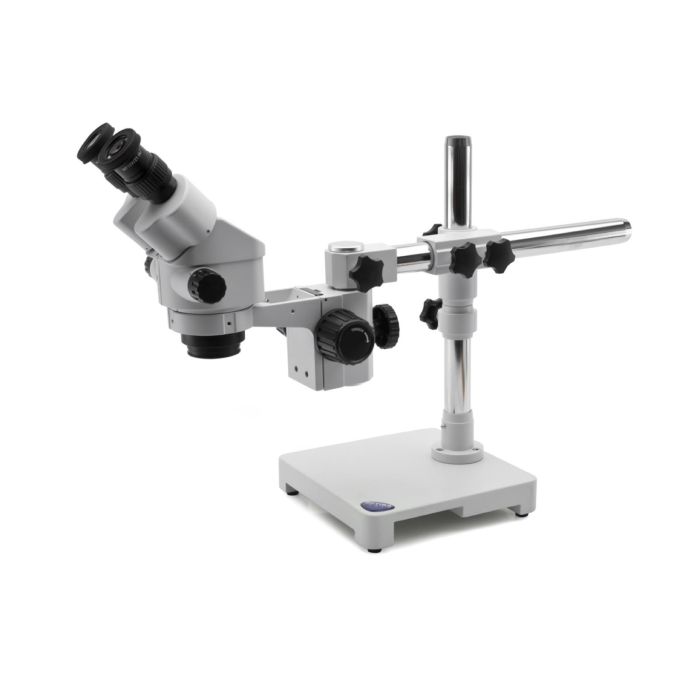

Optika Stereomicroscope SLX-4 Binocular Boom Stand Zoom

Optika Stereomicroscope SLX-4 Binocular Boom Stand Zoom

Like SLX-2, but with boom stand for large specimen and special applications: 45° inclined binocular head, zoom objective 7x to 45x, eyepieces WF 10x/23, without ilumination. All other specifications see under SLX-2.

Head: Binocular, 45° inclined; 360° rotating
Dioptric adjustment: On both eyepieces
Eyepieces: WF10x/21 mm, high eyepoint, secured by screw and with rubber cups
Objective: Parfocal achromatic zoom 0.7x…4.5x (6.43:1 ratio) with anti-fungus treatment
Working distance: 100 mm
Focusing: Rack and pinion mechanism controlled by a pair of knobs placed on both sides of the stand
Stand: Overhanging stand, 420 mm high, 430 mm horizontal arm length, base 230×230 mm with the following adjustments: height, longitudinal extension, and head rotation angle (left-right)

Instructions for Use:

Microscope Environment
This microscope should be used in a clean, dry, and shock-free environment with a temperature range of 5°-40°C and a maximum relative humidity of 75% (non-condensing). Use a dehumidifier if necessary.

Cleaning the Optics

If optical parts need to be cleaned, try the following steps:

• First, use compressed air.
• If this is not sufficient: Use a soft, lint-free cloth with water and a mild detergent.
• As a last option: Use a cloth moistened with a 3:7 mixture of ethanol and ether.
  Note: Ethanol and ether are highly flammable liquids. Do not use them near heat sources, sparks, or electrical equipment. Work in a well-ventilated area.
  Remember never to wipe the surfaces of optical parts with your bare hands. Fingerprints can damage the optics.

Do not disassemble objectives or eyepieces to clean them.

Legal Notices

Safety:
We do not accept liability for damage caused by improper and/or non-recommended use. Please carefully assess the suitability of the product before any alternative use.

Important Guidelines During and After Using the Microscope

• The microscope should always be transported vertically, ensuring that no movable parts, such as the eyepieces, fall out.
• Never mishandle the microscope or apply unnecessary force to it.
• Never attempt to service or repair the microscope yourself.
• After use, immediately turn off the light, cover the microscope with the provided dust cover, and store it in a dry and clean place.

Electrical Safety Precautions

• Before connecting the power supply, ensure that the supply voltage in your region matches the operating voltage of the device and that the lamp switch is in the OFF position.
• Users must comply with all safety regulations applicable in their region.
• The device carries the CE safety label. However, users are fully responsible for ensuring the safe use of the device.

If you need to send the microscope to Optika for maintenance, please use the original packaging.

Manufacturer Information in Accordance with EU Regulation 2023/988

OPTIKA S.r.l.
Via Rigla, 30
24010 - Ponteranica (BG) - Italy
