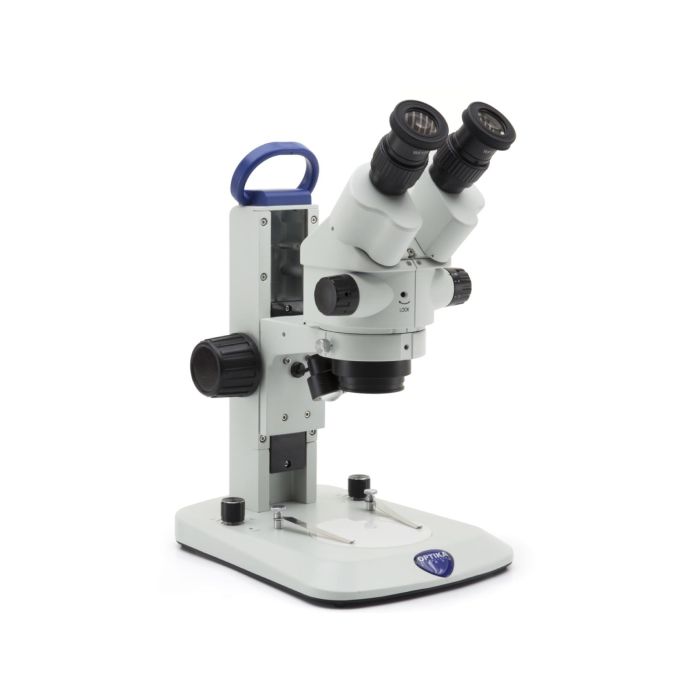

Optika Stereomikroskop SLX-2 Binokular Zoom
Die Stereomikroskope der SLX Serie sind Instrumente, die speziell für Labor und Industrie gefertigt werden. Ihre optische und mechanische Qualität stellt sie an die Spitze ihrer Klasse, speziell im Hinblick auf das Preis-Leistungs-Verhältnis. Alle 4 Modelle basieren auf demselben optischen System und können für jegliche Verwendung zu einem sehr günstigen Preis angepasst werden. Ein überaus reichhaltiges Angebot an Zubehör steht ebenfalls zur Verfügung. Grundausstattung: Binokularkopf 45°, Zoomobjektiv 0.7x bis 4.5x, Weitfeldokulare 10x/23mm, Dioptinausgleich, Augenabstand verstellbar von 51 bis 75 mm, mit Auf- und Durchlichtbeleuchtung 12V/20W. Lichtstärke für beide Beleuchtungen stufenlos einstellbar.
Observation Method - Transmitted Light Brightfield: Yes
Observation Method - Incident Light Brightfield: Yes
Head Type: Binocular
Construction material: Aluminum & Plastic molds / Aluminum gears
Inclination: 45°
360° rotating: Yes
Interpupillary distance (mm): 51-75
Dioptric adjustment: On both tubes
Head holder internal diameter (mm): 76
Tube inner diameter (mm): 30
Eyepieces Field number (mm): 21
Magnification: 10x
Micrometric scale: As optional
Diameter of micrometer glass (mm): 23
High eyepoint (for glass wearers): Yes
Rubber cup: Yes
Retractable protections: Yes
Objective Optical system: Greenough
Anti-fungus treatment: Yes
Objective Type: Achromatic
Zoom type: Parfocal achromatic
Working distance (mm): 100
Standard magnifications: 7x-45x
Zoom ratio: 6,43
Focusing System Type: Coarse
Coarse total travel (mm): 110
Adjustable tension: Yes
Head holder internal diameter (mm): 76
Stand Type: Fixed arm
Handle: Yes
Stage:
White diffusion plate for transmitted illumination: Yes, diameter 100 mm
Black/white contrast plate for incident illumination: As optional
Specimen clips: Yes
Transmitted Illumination: Type EcoLED
Brightness control: Manual
Lifetime (hours): > 65,000
Temperature (K): 6,300
Incident Illumination Type: EcoLED
Brightness control: Manual
Lifetime (hours): > 65,000
Temperature (K): 6,300
Power Supply for Illumination Type: External
Microscope connector: Jack, 2.1 mm
Power plug type: Multi-plug (EU, UK, US)
Input voltage: 100/240 Vac, 50/60 Hz
Output voltage: 5 Vdc 500 mA
LED indicator: Yes
Rechargeable batteries: Yes
Battery type: Ni-MH (3x, AA size)
Working time of batteries (hours): 12
Charging time of batteries (hours): 8
Accessories Included:
Dust cover: Yes
User Manual: Digital version (downloadable)
Additional Information:
Maximum sample height (mm): 100
Product Dimensions:
Total height (mm): 365
Head height (mm): 230
Head width (mm): 140
Head depth (mm): 150
Base height (mm): 30
Base width (mm): 205
Base depth (mm): 280
Product Weight (kg): 3,5
